Description

Coiled Tubing Equipment Package UTF-02

Overview

This coiled tubing equipment package is configured for high-pressure well intervention operations and includes the main assemblies required for coiled tubing service work. The package includes a Control Cabin with integrated Power Unit, Coiled Tubing Reel with DID Drum, Injector Head with Gooseneck, Stripper, Quad BOP, Pumping Unit, Treatment Line Rack with Flanges and Risers, Electric Generator, and N2 Cylinder Rack.

Major Components

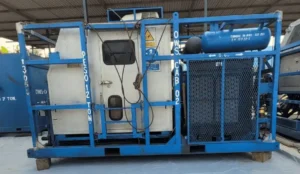

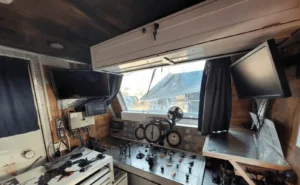

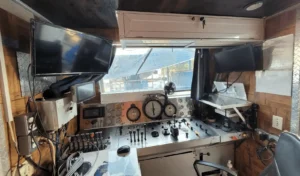

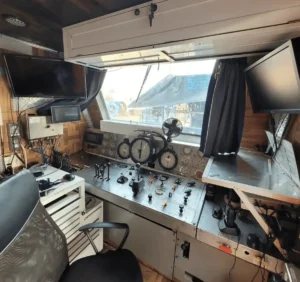

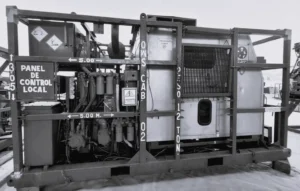

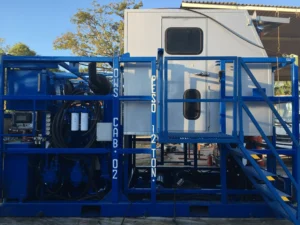

1. Control Cabin and Power Unit – OWS-CAB-02

Control cabin with integrated power unit
Closed-loop hydraulic system
Integrated MEDCO data acquisition system
Includes:
Control cabin
Power unit
Hose extension reel

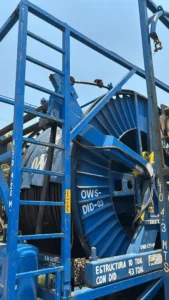

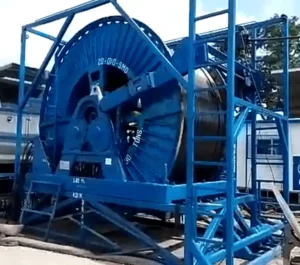

2. Coiled Tubing Reel – OWS-CTF-04 / DID Drum – OWS-DID-03

Reel capacity: 7,400 m of 1 ½” coiled tubing
Swivel: 15,000 PSI
Dimensions: 4.83 m (L) × 2.80 m (W) × 4.22 m (H)
Weight with coiled tubing: 43 Ton

Current Coiled Tubing Installed:
Manufacturer: NOV-QT
Diameter: 1 ½”
Grade: QT-900
Length: 6,990 m
Category: 1 ½” – 15K PSI

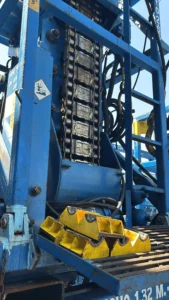

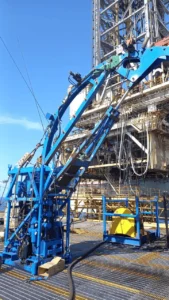

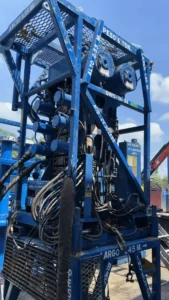

3. Injector Head and Gooseneck – OWS-IH-06

Brand: Hydra Rig
Model: HR680
Current insert: 1 ½”
Tension capacity: 80,000 lbs
Snubbing capacity: 40,000 lbs
Injector dimensions: 1.80 m (L) × 1.35 m (W) × 2.55 m (H)
Transport skid dimensions: 6.70 m (L) × 2.60 m (W) × 3.45 m (H)
Weight: 14 Ton, including transport skid
Gooseneck: 120”

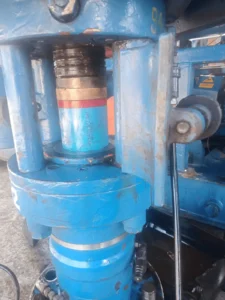

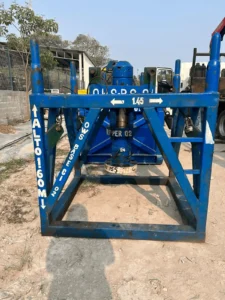

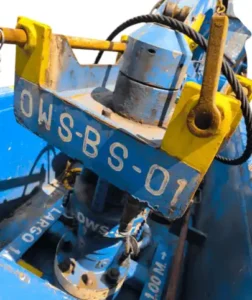

4. Stripper

Brand: TOT (NOV)
Model: DSV6 UPPER/UNDER 2015
Diameter: 4 1/16”, dressed for 1.5” OD
Maximum working pressure: 15,000 PSI
Coiled tubing operating range: 1” to 2”
Dimensions: 0.60 m (L) × 0.55 m (W) × 1.10 m (H)
Weight: 0.3 Ton

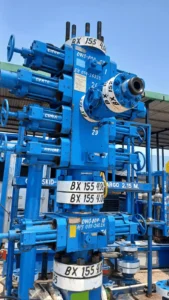

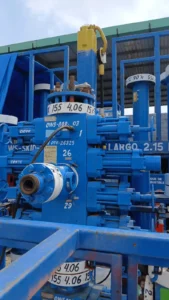

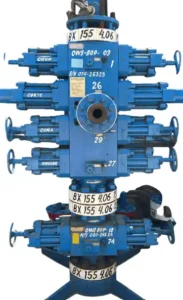

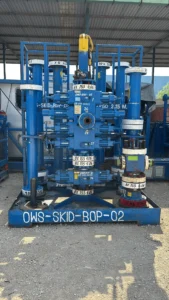

5. Quad BOP / Preventer – OWS-BOP-03

Brand: TOT (NOV)
Model: ES46 15K
Diameter: 4 1/16”
Maximum working pressure: 15,000 PSI
Coiled tubing operating range: 1” to 2”
Dimensions: 1.20 m (L) × 0.50 m (W) × 0.95 m (H)
Weight: 1 Ton

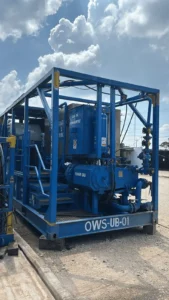

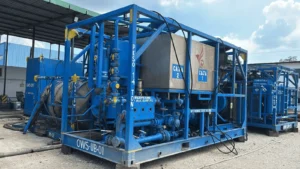

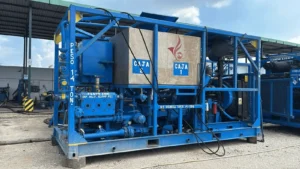

6. Pumping Unit – OWS-UB-01

Brand: PRECISE
Serial number: OILWELL SVCS PI-006
Assembly number: CD101408
Fluid End: Gardner Denver Compact Triplex
Piston diameter: 3”
Engine: John Deere 400 HP
Transmission: Standard, 6-speed
Maximum working pressure: 15,000 PSI
Operating range: 0.3 to 6 bpm
Transport skid dimensions: 5.37 m (L) × 2.44 m (W) × 2.90 m (H)
Weight: 14 Ton

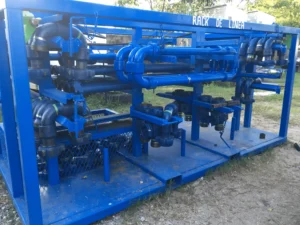

7. Treatment Line Rack, Flanges and Risers

Treatment Line:
Diameter: 2”
Maximum working pressure: 15,000 PSI
Available length: 60 m

Risers:
Diameter: 4 1/16”
Maximum working pressure: 15,000 PSI
Ring: BX-155
Available length: 21 m

8. Electric Generator – ETM-GE-02

Brand: Chicago Pneumatic
Model: CPSG40
Configuration: Alternating current
Service interval: Every 400 hours
Year: 2018
Fuel: Diesel – 65 liters
Dimensions: 2.50 m (L) × 1.20 m (W) × 1.70 m (H)
Weight: 1.6 Ton

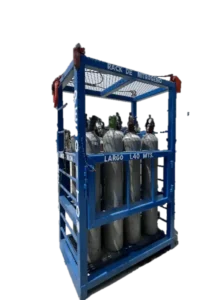

9. N2 Cylinder Rack

Brand: NOV
Model: RACK N2
Year: 2017
Configuration: N/A
Service: Annual
Dimensions: 1.40 m (L) × 0.90 m (W) × 2.40 m (H)
Weight: 1 Ton

General Specifications

Complete coiled tubing equipment package identified as UTF-02
Configured for 1 ½” coiled tubing service operations
Main pressure-rated components listed at 15,000 PSI working pressure
Package includes control, power, coiled tubing handling, pressure control, pumping, treatment line, electrical generation, and nitrogen support equipment
Includes transport skids and racks for major assemblies
