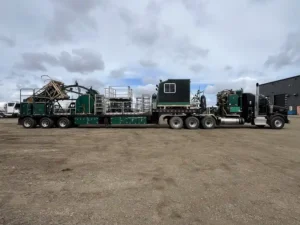

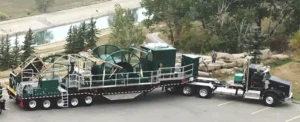

2017 NOV Hydra Rig 100K HR6100 Coiled Tubing Unit Rig 7

UNIT IDENTIFICATION

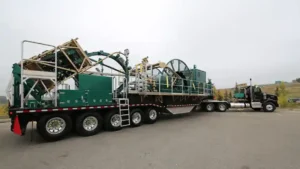

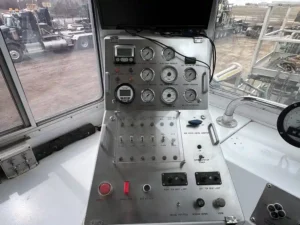

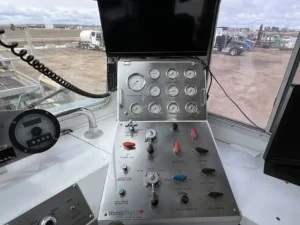

• Unit: Control & Power Trailer + Reel Trailer Spread — Rig 7

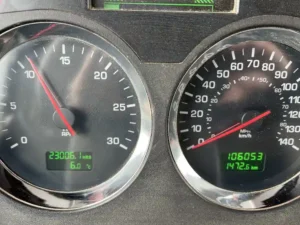

• Engine Hours: 23,005 hrs | Odometer: 106,053 km

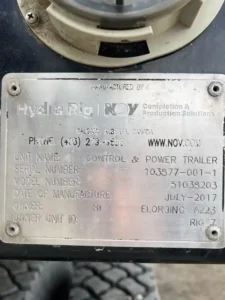

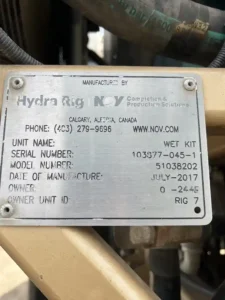

• Control & Power Trailer Serial: 103877-000-1 | Model: 51037902
• Trailer VIN: 2PLC05136JBD18095 | Date of Manufacture: July 2017

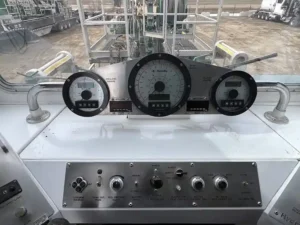

INJECTOR HEAD — NOV HYDRA RIG HR6100

• Model: HR6100
• Continuous Pull Capacity: 45,359 kg (100,000 lb)
• Snubbing Capacity: 22,680 kg (50,000 lb)
• Maximum Speed: 45.7 m/min (150 ft/min)
• Max Transport Weight: 6,800 kg (15,000 lb)
• Max Operational Lifting Eye Capacity: 43,091 kg (95,000 lb)
• Power Hose & Communication Lines: 150 ft
• Reference Manual: NOV Hydra Rig Owner’s Manual — HR6100

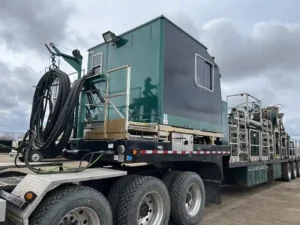

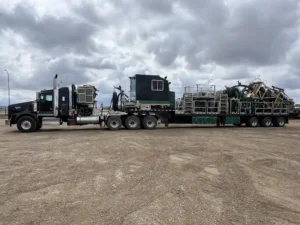

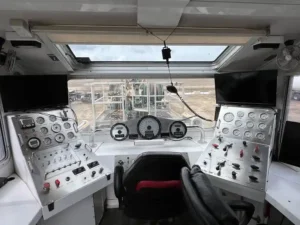

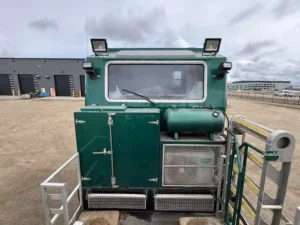

CONTROL & POWER UNIT — DIMENSIONS (Tractor + Trailer)

• Overall Length: 23.45 m (76 ft 11 in)
• Width: 2.59 m (8.5 ft)
• Height: 4.28 m (14 ft 1 in)

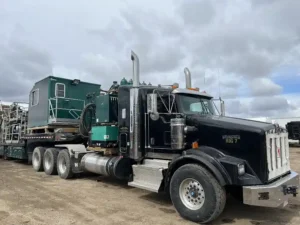

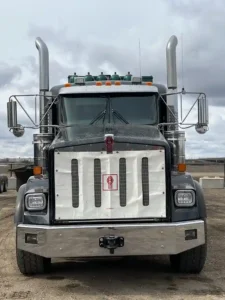

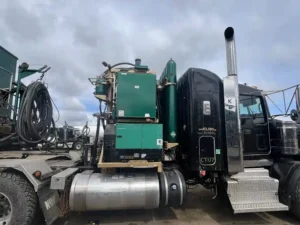

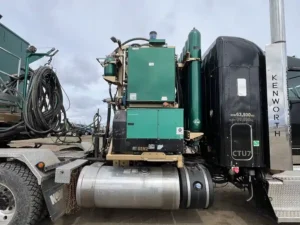

TRACTOR — KENWORTH T-800

• VIN: 1XKDP4TX2CR98008 | Date of Manufacture: December 2011
• GVWR: 39,345 kg (86,741 lb)
• Wheelbase: Single Steer / Tri-Drive
• Steer Axle GAWR: 9,072 kg (20,000 lb)
• Steer Tires: 385/65R22.5 | Rims: 22.5″ x 12.25″ | Inflation: 862 kPa (125 psi)
• Drive Axle GAWR: 10,281 kg (22,666 lb) each
• Drive Tires: 11R24.5 (dual) | Rims: 24.5″ x 8.25″ (dual) | Inflation: 655 kPa (95 psi)

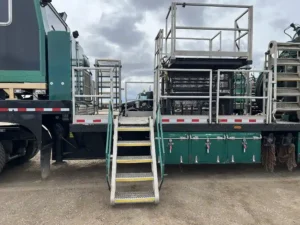

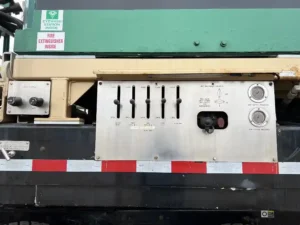

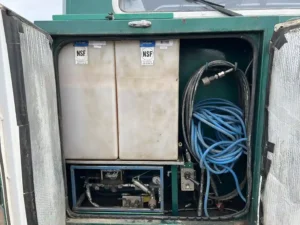

CONTROL & POWER TRAILER — PEERLESS CH-51-3A

• VIN: 2PLC05136JBD18095 | Date of Manufacture: April 2017
• GVWR: 45,000 kg (99,208 lb)
• Axle Configuration: Tri-axle
• Front & Rear GAWR: 10,433 kg (23,000 lb) each
• Tires: 275/70R22.5 (J) | Rims: 8.25″ x 22.5″ | Inflation: 830 kPa (120 psi)
• Length / Width: 15.8 m (51.9 ft) / 2.6 m (8.5 ft)

GENERATOR — CUMMINS

• Model: 12HDKCD-2209F
• Power Output: 12 kW @ 60 Hz
• Voltage: 120 VAC / 240 VAC
• Current: 100 A (120 VAC) / 50 A (240 VAC)
• Weight (wet): 359 kg (792 lb)
• Dimensions: 668.8 mm H x 621.1 mm W x 1,052 mm L (27.1″ H x 24.4″ W x 41.4″ L)

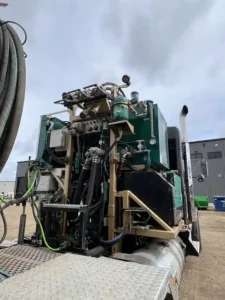

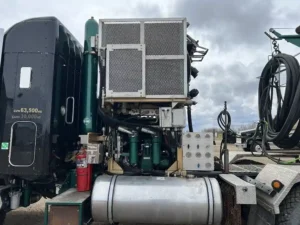

HYDRAULIC PUMP SYSTEM

• Injector Pump (In-Hole / Out-Hole): 378 lpm (90 gpm) @ 34,473 kPa (5,000 psi) max
• CT Reel Replenish Pump: 132.5 lpm (39 gpm) @ 2,620 kPa (380 psi)
• System Pump: 296 lpm (78 gpm) @ 20,684 kPa (3,000 psi)
• BOP Pump: 58.9 lpm (15.5 gpm) @ 20,684 kPa (3,000 psi)

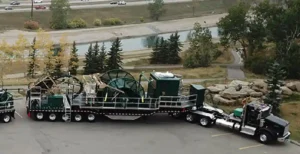

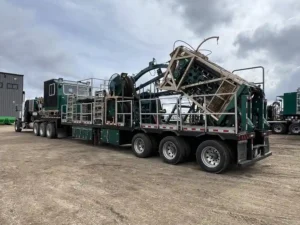

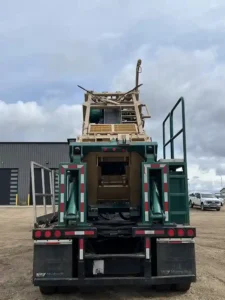

REEL TRAILER

• Serial Number: 105217-001-1 | Model: Kinetic
• VIN: 2K9KCH557KP075017 | Date of Manufacture: September 2018
• Overall Length: 33.8 m (111 ft) | Width: 3.8 m (12 ft 4 in) | Height: 4.7 m (15 ft 4 in)

COILED TUBING REEL

• CT String Capacity: 7,500 m of 2-3/8″ tubing
• Core Diameter: 2.29 m (90″)
• Outside Diameter: 4.5 m (177″)
• Inside Flanges: 2.59 m (102″)
• Hydraulic Stairs & Landing Gear: 2.8 HP heavy-duty, 24 VDC/SOL

ADDITIONAL SYSTEMS

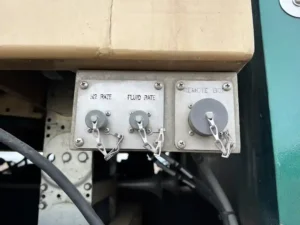

• Data Acquisition: Orion 4
• Accumulator System: 21 MPa
